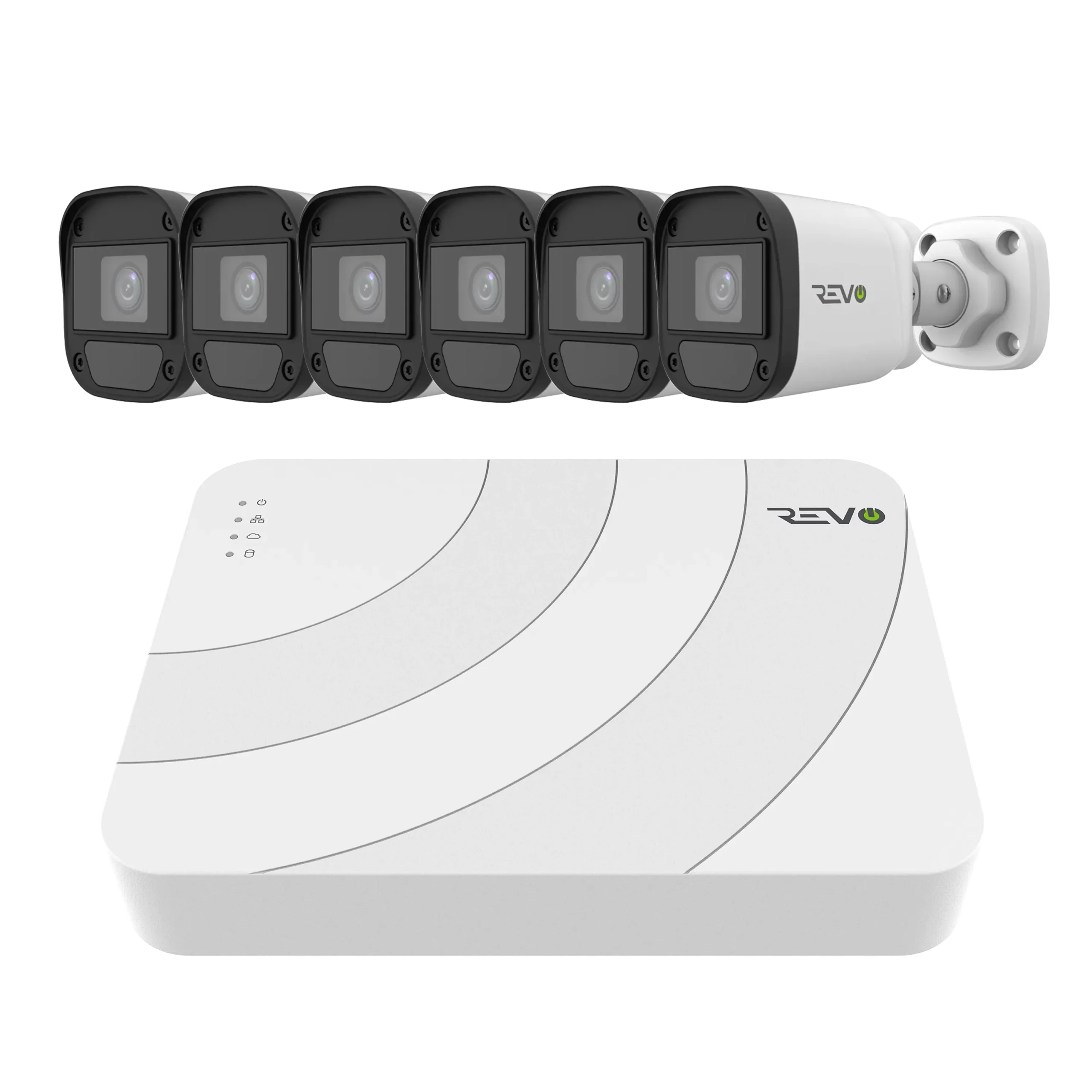

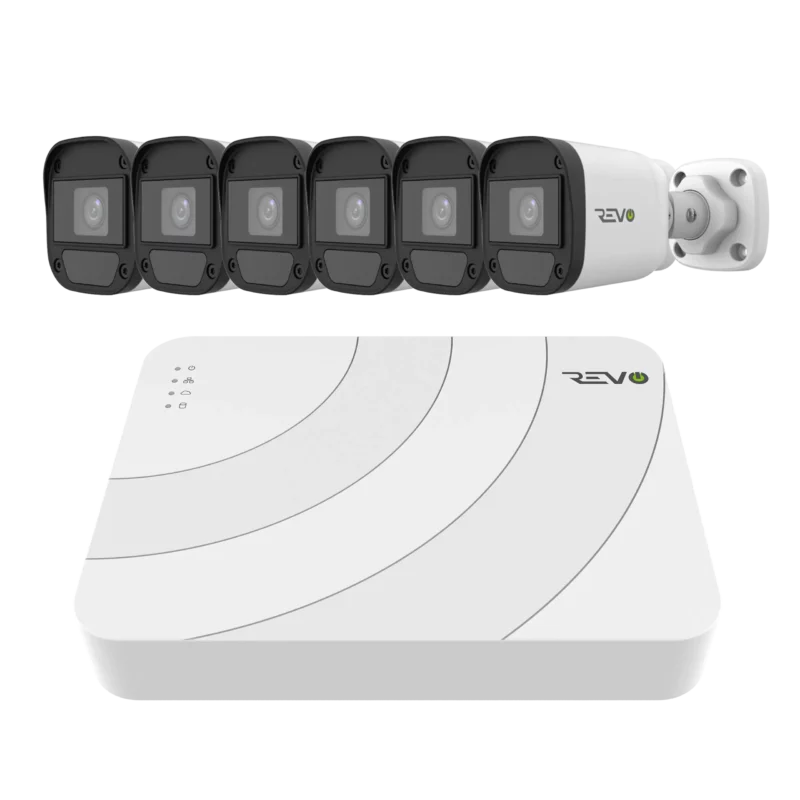

Revo Ultra Blue Series 8CH IP Video Surveillance System, 8 CH 4K NVR, 2TB HDD, 6X 5 Megapixel Indoor/Outdoor Audio Capable IR Bullet Cameras – Remote Access Via SMART Phone, Tablet, Pc & Mac

Name: Buy Revo Security System - 8 Channel 4K NVR & 6 surveillance cameras
SKU: RU82ABNDL-6
Price: 661.83 USD
Availability: InStock
Rating: 4.804878048780488 (41 reviews)

SKU: RU82ABNDL-6

Original price was: $735.36.Current price is: $661.83.

-10%

checkmark FREE delivery

In stock

Add to wishlist

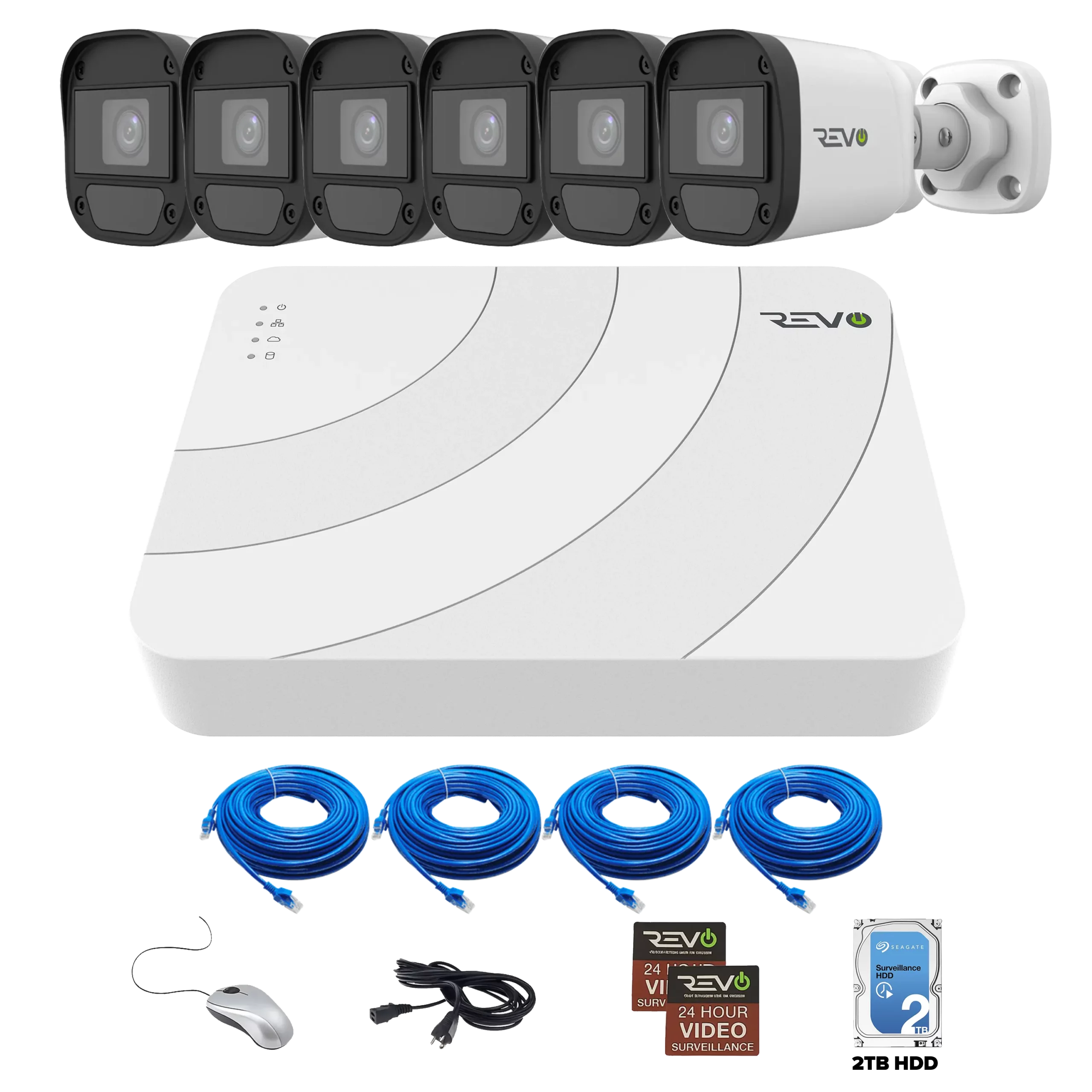

Core features

8 Ch. 4K H.265 IP NVR with built-in 8 RJ45 PoE Ports
5MP Indoor/Outdoor IP Bullet Cameras (6)
2TB Video Surveillance Grade HDD
Hassle free software upgrade via Cloud
4K Recording Capability
4K Video Output compatible with 4K monitors
100’ Cat 5e Cable (6)
Myrevocloud.com – Access your NVR from virtually any IE browser.
Two-Step Smartphone View Setup – iPhone and Android.
Revo Ultra Remote Computer Software – View multiple units at once

Delivery & Returns

For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.

Gallery
Description
Additional information
Technical Specifications
Videos
Disclaimer

“With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Its unique design complements any home or business. The Revo Ultra’s superb video quality is based on IP technology. The RU82ABNDL-1 is a complete, plug and play HD surveillance system with 8 channel NVR, 2TB and 6x Four Megapixel HD Indoor/Outdoor Bullet cameras. The REVO ULTRA NVR is powerful featuring state of the art H.265 Compression and 4K video output. Revo Ultra cameras features optical grade, IR anti reflection glass, massive 5 Megapixel Sensors, double the resolution of standard 1080p. They also come equipped with Smart commercial grade “OSRAM” LEDs. They strongly and evenly illuminate the scene up to an unprecedented 100′ in total darkness. Night vision video quality is unmatched. The cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F. S.M.A.R.T. technology enables the system to monitor its own health and alert the user of any malfunction. The polished look and intuitive feel of the Ultra’s interface is a joy for everyday use whether you’re using the NVR itself, the Mobile App, Computer Software or Browser. Setup is a snap with PoE and Cat 5e cable. One cable carries everything between the Revo Ultra camera and NVR. “

Additional information

Weight	25.0 lbs
Open Box	No
Upc	045924598851
Type	ip
Audio Recording	Yes
Disk Space	2 TB

Technical Specifications

RUCB36-1 4MP IR Bullet Camera

Camera
Sensor	1/3″, 4.0 megapixel, progressive scan, CMOS
Lens	3.6mm@F1.8 Angle of view(H): 90.5°
Shutter	Auto/Manual, 1/6~1/8000 s
Min. Illumination	Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 30m (98 ft) IR range
S/N	>55dB
WDR	120dB
Noise Reduction	2D/3D

Video
Max. Resolution	2592×1520
Video Compression	H.264/MJPEG
Frame Rate	4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming	Triple
9:16 Corridor Mode	Supported
ROI	Supported
OSD	Up to 8 OSDs
Motion Detection	Up to 2 areas
Privacy Mask	Up to 4 areas

Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration	API

Interface
Network	1 RJ45 10M/100M Base-TX Ethernet

General
Power	12 V DC, or PoE (IEEE802.3 af 2.0 W (6.4 W with IR on)
Dimensions (L × W × H)	157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight	0.45 kg (0.99 lb)
Working Environment	-35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection	IP66

Videos

**Revo America** – How to create my Revo account

**Revo America** – How To Setup Your Revo NVR

**Revo America** – How To View Your Cameras Remotely

**Revo America** – How To Network Your Revo NVR

**Revo America** – How To Connect Cameras To The NVR

**Revo America** – How To Add NVR To myrevocloud Account

Disclaimer

Specs and design can change without previous notice

I use the Revo Ultra 16 ch at home and have been installing the 8,16,32, and 64 channel units for clients for over two years now. Excellent quality and features. My customers are very satisfied.

Cameras work fine, delivery time good, packing not so much box arrived with bottom had been cut open.

Wow is all I can say I never heard of Revo brand before but did some research and this is near pro-grade hardware your getting from Revo.

If your not a DIYer or have some technical backround you might have
some trouble as the documentation is poor but bright side is Revo has
an amazing email/phone tech support that is included with the unit.

Installed this 6 camera unit in less than 5 hours. First time ever installing a security camera system. Fished walls and ran cat 5 through attic. Unit works as promised. Did have to contact Revo support. Couldn't say anything bad about this support team, they we're all super great and wait time was less than 2 minutes. Would highly recommend this product.

If your looking for a TOP OF THE LINE home security NVR system on a budget this is it. I never heard of REVO brand before but did some homework and all I have to say is WOW.

The HARDWARE Revo America is reselling is TOP NOTCH (Hisilicon H.265 processing cpu and/or dsp) cameras are using above average components also.

So the PRO is hardware your getting is very good.

The CON is documentation it is horrible (REVO America you need to hire a Documentation Engineer/Technician to revamp the material included) but where this is a CON it's they MAKE UP for it with FREE TECH SUPPORT if you don't know how to setup or route something they will help as long as it's NOT TOO TECHNICAL (I have a double Firewalled/VPN gated configuration that is not what an average joe has)

All in all i'm truly impressed with this bundle vs other brands and their bundles out there for the average consumer. I have no regerts (sorry I was eating a milky way)
