With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra’s unique design complements any home or business. The Revo Ultra’s RUCMD36-1C Mini Dome Camera is based on IP technology. IP, or Internet Protocol, technology brings the power and beauty of digital high definition video right to the heart of your surveillance system. The Revo Ultra RUCMD36-1C Mini Dome Camera takes it one step further, featuring, Smart IR LEDs, 3D Digital Noise Reduction, and massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. Revo Ultra cameras also come equipped with Smart IR Arrays. Night vision video quality is unmatched. With enhanced dispersion, IR arrays strongly and evenly illuminate the scene up to an unprecedented 100′ in total darkness. Smart IR adjusts IR Array intensity for just the right amount of IR illumination at any given time. Revo Ultra cameras are built for the outdoors, capable of handling temperatures as hot as 140F and as cold as -31F, rain or shine. When it comes to surveillance, every detail counts.

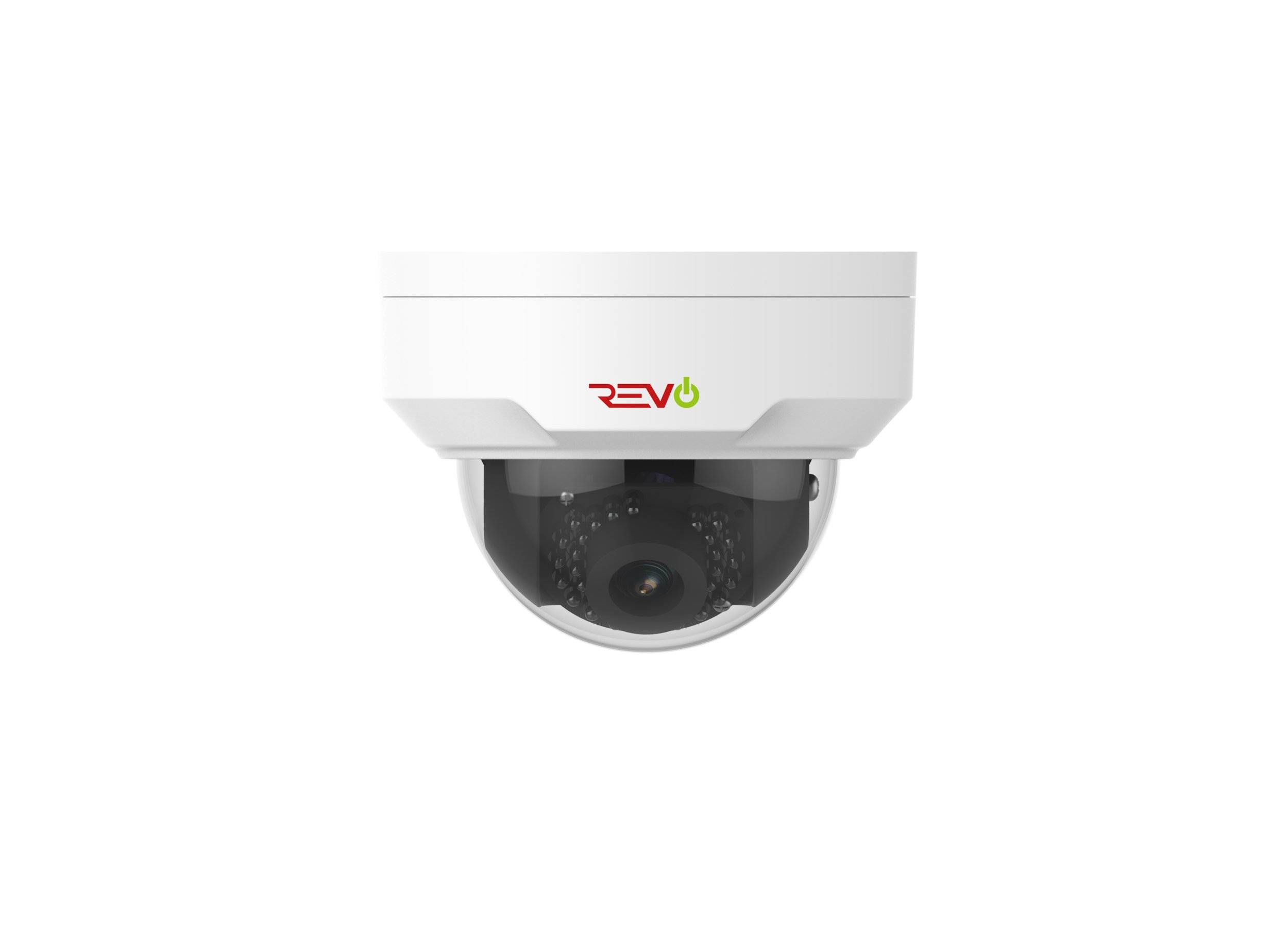

Ultra HD 4 Megapixel IP Surveillance Mini Dome Camera
SKU: RUCMD36-1C
Original price was: $119.06.$107.15Current price is: $107.15.
-10%FREE delivery
Same Day Dispatch
In stock
Core features
- 4MP Indoor/Outdoor IP Vandal Proof Dome Camera with 100’ Night Vision Camera
- 120 dB True WDR (Wide Dynamic Range)
- H.265/H.264/MJPEG
- Corridor View Mode – Perfect for hallways, doors, windows.
- Smart IR
- 3D Digital Noise Reduction
- IK10 vandal resistant
- IP 66 – Water Resistant
- Wide temperature range: -35°C to 60°C (-31°F to 140°F)
- Wide input voltage range of ±25%
- 100’ Cat 5e Cable Included
Delivery & Returns
For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.
Additional information
Weight | 4.0 lbs |
---|---|
Select a Warranty | 1 Year (Included), 2 Year |
Upc | 812237010413 |
Built-in Microphone | No |
Built-in Speaker | No |
Product Model | Standard Cameras |
Product Type2 | Camera |
Weather Protection Rating | IP66 |
Type of Camera | Mini Dome Camera |
Temperature Range | (-31F to 140F) |
Vandal Resistant Rating | IK10 |
Motorized Varifocal Lens | No |
Compression | H.265/H.264/MJPEG |
3D Noise Reduction | Yes |
True WDR | Yes |
Optical glass | No |
Built-in Heater | No |
ONVIF Compliant | Yes |
Corridor View Mode | Yes |
Smart Alert | Yes |
Triple Streams | Yes |
Smart IR | Yes |
Intelligent Temperature Control TechNology | No |
Innovative Snow-Removing Functionality | No |
Technical Specifications
RUCMD36-1 4MP Network IR Fixed Dome Camera
Camera | |
---|---|
Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
Lens | 3.6mm@F1.8 Angle of view(H): 77.6° |
Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
Shutter | Auto/Manual, 1/6~1/8000 s |
Day/Night | IR-cut filter with auto switch (ICR) |
IR | 100 ft IR range |
AWB(Auto white balance) | Auto/manual |
Gain Control | Auto/manual |
WDR | 120dB |
Noise Reduction | 2D/3D |
Video | |
---|---|
Max. Resolution | 2592×1520 |
Video Compression | H.265/H.264/MJPEG |
Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
Video Streaming | Triple |
OSD | Up to 8 OSDs |
9:16 Corridor Mode | Supported |
Motion Detection | Up to 2 areas |
Privacy Mask | Up to 4 areas |
Network | |
---|---|
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP |
Compatible Integration | API |
Interface | |
---|---|
Network | 10M/100M Base-TX Ethernet |
General | |
---|---|
Power | 12 V DC±25%, PoE (IEEE 802.3af) Power consumption: 3.5 W (5.5W with IR on) |
Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
Weight | 0.45 kg (0.99 lb) |
Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
Ingress Protection | IP66 |
Videos
Disclaimer
Specs and design can change without previous notice
