With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the very best that Revo has to offer. Revo Ultra’s unique design complements any home or business. The Revo Ultra’s superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The RU82MD4GB4G-2Tsystem features a high powered 8CH H.265 NVR, 4 Indoor/Outdoor IR Mini Dome and 4 IR Bullet Cameras. The cameras feature 3D Digital Noise Reduction, massive 4 Megapixel Sensors – double the resolution of standard 1080p HD. Smart IR LEDs illuminate the scene up to an impressive 80′ in total darkness. The cameras is built for the outdoors, handling temperatures as hot as 140F and as cold as -31F, rain or shine. View your Revo Ultra 4MP system from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com, compatible with Internet Explorer. Want to view multiple Revo Ultra units at different locations from a single computer? With Revo EZStation Software, design your own custom layout of which cameras you’d like to view with Video Wall, or even lay them out on a custom map of your property with E-Map. .Experience Peace of Mind with the ultimate high resolution IP technology from Revo.
NDAA Compliant
Ultra HD 8 Ch. 2TB NVR Surveillance System with 4 4MP Mini Vandal Dome Cameras
$606.36 Original price was: $606.36.$545.73Current price is: $545.73.
Ultra HD 8 Ch. 2TB NVR Home Surveillance System with 8 Security Cameras
$881.99 Original price was: $881.99.$793.79Current price is: $793.79.

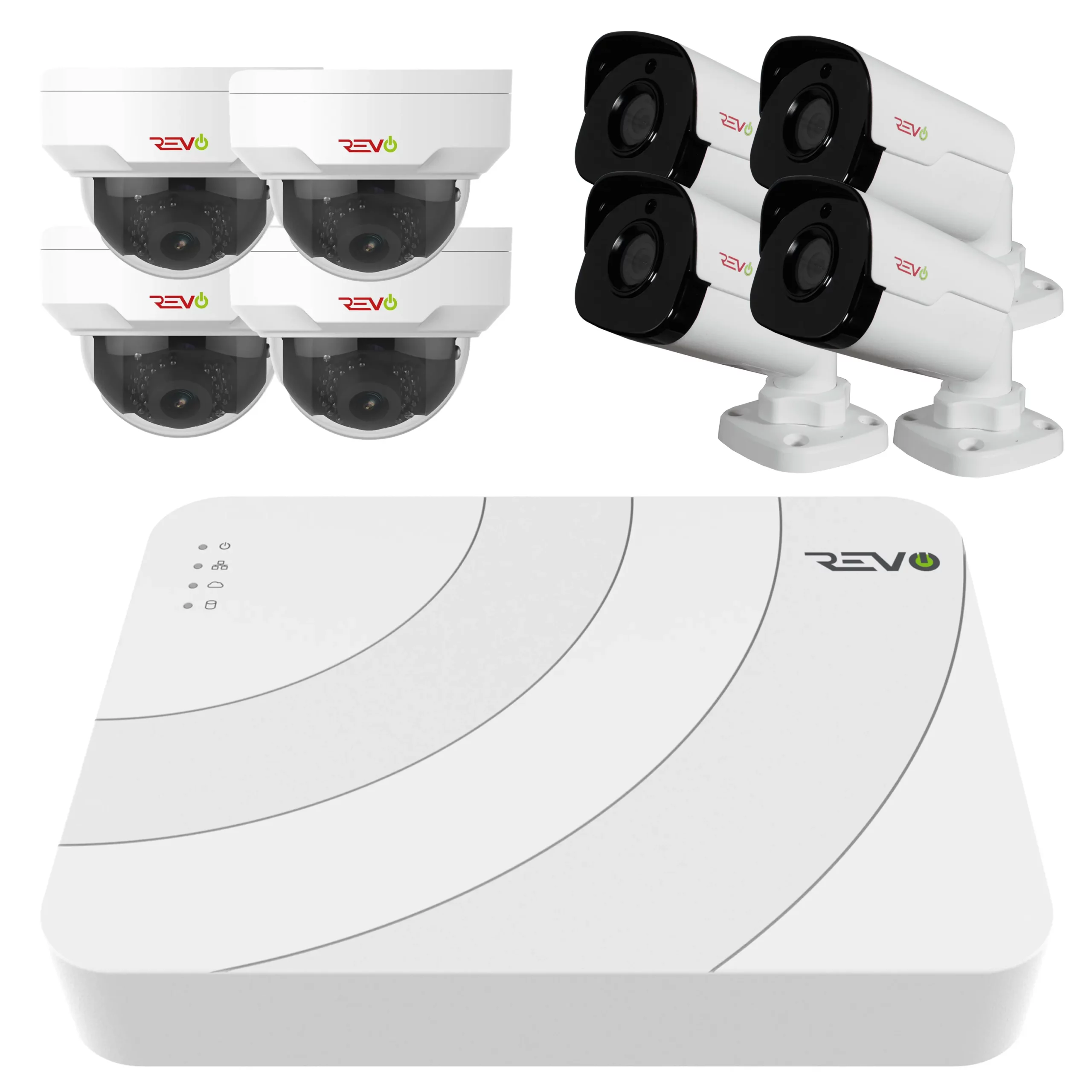

Ultra HD 8 CH. 2TB NVR Home Camera System With 8 4MP Indoor/Outdoor Security Cameras
SKU: RU82MD4GB4G-2T
Original price was: $881.99.$793.79Current price is: $793.79.
-10%FREE delivery
In stock
Core features
- 8 Ch. 4K, H.265 IP NVR with 8 RJ45 PoE Ports
- 2 TB Video Surveillance Grade HDD
- 4MP Indoor/Outdoor Vandal Resistant IR Mini Dome Camera (4)
- 4MP Indoor/Outdoor IR Bullet Camera (4)
- 4K HDMI output (Easy to connect to a 4K monitor or TV)
- Software updates via Cloud (Recorder & Cameras)
- 100’ Cat 5e Cable Included (8)
Delivery & Returns
For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.
Additional information
Weight | 35.0 lbs |
---|---|
Open Box | No |
Select a Warranty | 1 Year (Included), 2 Year |
Upc | 812237010567 |
Type | ip |
Disk Space | 2 TB |
Technical Specifications
RUCMD36-1 4MP Network IR Fixed Dome Camera
Camera | |
---|---|
Sensor | 1/3″, 4 megapixel, progressive scan, CMOS |
Lens | 3.6mm@F1.8 Angle of view(H): 77.6° |
Min. Illumination | Colour: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR |
Shutter | Auto/Manual, 1/6~1/8000 s |
Day/Night | IR-cut filter with auto switch (ICR) |
IR | 100 ft IR range |
AWB(Auto white balance) | Auto/manual |
Gain Control | Auto/manual |
WDR | 120dB |
Noise Reduction | 2D/3D |
Video | |
---|---|
Max. Resolution | 2592×1520 |
Video Compression | H.265/H.264/MJPEG |
Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
Video Streaming | Triple |
OSD | Up to 8 OSDs |
9:16 Corridor Mode | Supported |
Motion Detection | Up to 2 areas |
Privacy Mask | Up to 4 areas |
Network | |
---|---|
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, Qos, DNS, DDNS, NTP, FTP, UPnP, HTTP |
Compatible Integration | API |
Interface | |
---|---|
Network | 10M/100M Base-TX Ethernet |
General | |
---|---|
Power | 12 V DC±25%, PoE (IEEE 802.3af) Power consumption: 3.5 W (5.5W with IR on) |
Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) |
Weight | 0.45 kg (0.99 lb) |
Operating Conditions | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
Ingress Protection | IP66 |
RUCB36-1 4MP IR Bullet Camera
Camera | |
---|---|
Sensor | 1/3″, 4.0 megapixel, progressive scan, CMOS |
Lens | 3.6mm@F1.8 Angle of view(H): 90.5° |
Shutter | Auto/Manual, 1/6~1/8000 s |
Min. Illumination | Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
IR Range | Up to 30m (98 ft) IR range |
S/N | >55dB |
WDR | 120dB |
Noise Reduction | 2D/3D |
Video | |
---|---|
Max. Resolution | 2592×1520 |
Video Compression | H.264/MJPEG |
Frame Rate | 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps |
Video Streaming | Triple |
9:16 Corridor Mode | Supported |
ROI | Supported |
OSD | Up to 8 OSDs |
Motion Detection | Up to 2 areas |
Privacy Mask | Up to 4 areas |
Network | |
---|---|
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP |
Compatible Integration | API |
Interface | |
---|---|
Network | 1 RJ45 10M/100M Base-TX Ethernet |
General | |
---|---|
Power | 12 V DC, or PoE (IEEE802.3 af 2.0 W (6.4 W with IR on) |
Dimensions (L × W × H) | 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”) |
Weight | 0.45 kg (0.99 lb) |
Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) |
Ingress Protection | IP66 |
DVR-RU8NVR2 8 Channel Digital Video Recorder
Video and Audio | |
---|---|
IP Video Input | 8-ch |
Two-way audio Input | 1-ch, RCA |
Network | |
---|---|
Incoming bandwidth | 60Mbps |
Outgoing bandwidth | 64Mbps |
Remote connection | 128 |
Video/Audio Output | |
---|---|
HDMI/VGA Output | VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz, |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Audio Output | 1-ch, RCA |
Synchronous Playback | 8-ch |
Decoding | |
---|---|
Compression | H.265/H.264 |
Live view/ Playback | 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
Capability | 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25 |
Software | |
---|---|
Computer Operating System | Windows, Mac OS |
Internet Viewing | HomeSafe View App |
Handheld Device Supported | iOS, Android, 3G/4G Smartphones & Tablets |
Hard Disk | |
---|---|
SATA | 1 SATA interface |
Capacity | up to 6TB for each disk |
External Interface | |
---|---|
Network Interface | 1 RJ-45 10M/100M self-adaptive Ethernet Interface |
USB Interface | Rear panel: 2 x USB2.0 |
PoE | |
---|---|
Interface | 4 independent 100 Mbps PoE network interfaces |
Max Power | Max 30 W for single port Max 54W in total (13.5 W for each) |
Supported Standard | IEEE 802.3at |
General | |
---|---|
Power Supply | 52V DC |
Consumption ( without HDD and PoE ) | ≤ 8 W |
Working Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ) |
Working Humidity | 10% ~ 90% |
Dimensions | 270 × 205 × 42 mm ( 1.7” × 10.6” × 8.1” ) |
Weight ( without HDD ) | ≤ 0.62 Kg ( 1.50 lb ) |
Videos
Disclaimer
Specs and design can change without previous notice
