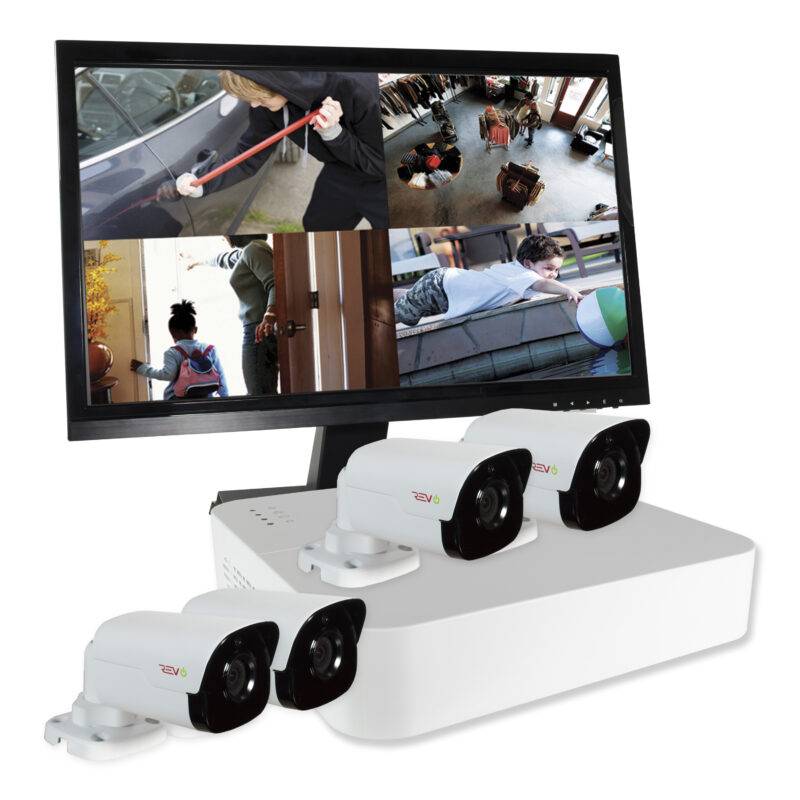

Ultra™ HD Surveillance System With Security Cameras & Monitor

SKU: RU41B4GM22-1T

CUSTOM BADGE!

$606.36

checkmark  FREE delivery

In stock

Add to Cart

4 channel security camera system,
Ultra™ HD Surveillance System with Security Cameras & Monitor $606.36

Free shipping on all orders over $100

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

Core features
  • 4 Ch. IP NVR with 4 RJ45 PoE Ports
  • Pre-installed 1 TB Video Surveillance Grade HDD
  • 4MP Bullet Cameras (4)
  • 100’ Cat 5e Cable Included (4)
  • 22 inch. LED Monitor • H.265 Compression
  • 4K HDMI output (Easy to connect to a 4K monitor or TV)
  • Supports easy firmware upgrade via Cloud (Recorder & Cameras)
  • Two-Step Smartphone View Setup – iPhone and Android
  • Myrevocloud.com – Access your Ultra NVR from IE
Delivery & Returns

For Same Day Freight, order by 2PM CT and receive your package. Returns are accepted within 30 days of product delivery, provided they are undamaged and in the original packaging.

4 channel security camera system,
Ultra™ HD Surveillance System With Security Cameras & Monitor
$606.36

With incredible video quality, ease of use, and powerful networking tools, Revo Ultra is the perfect solution for your micro market.

The Revo Ultra’s superb video quality is based on IP technology which brings the power and beauty of digital high definition video right to the heart of your surveillance. The 2nd Generation 4 CH REVO ULTRA NVR features state of the art 4K Video Output, H.265 Compression, and support up to 4K Cameras. The 4 Indoor/Outdoor bullet cameras feature, optical grade glass, 3D Digital Noise Reduction, massive 4 Megapixel Sensors, double the resolution of standard 1080p HD. IR arrays illuminate the scene up to an unprecedented 100′ in total darkness.

View your Revo Ultra 4MP cameras from anywhere. Using the Revo Ultra Mobile smartphone app, simply set up an account and then scan your NVRs QR code to begin mobile viewing. Access your Ultra NVR via the web using www.myrevocloud.com.. Want to view and manage multiple Revo Ultra units at different locations from a single computer? With Revo ULTRA REMOTE Software, design your own custom layout of which cameras you’d like to view with Video Wall, or even lay them out on a custom map of your property with E-Map.

Additional information

Weight 32.0 lbs
Open Box

No

Select a Warranty

1 Year (Included), 2 Year

Upc

812237019003

Quick Features

4 Megapixel HD Resolution, cameras included, Night Vision, Remote Viewing, Supports up to 4 channels, Packed with XXTB Hard Drive

Product Manual

https://support.revoamerica.com/series-support/revo-ultra/specification-sheets/cameras/RUCB36-1 Spec Sheet.pdf

Type

ip

Disk Space

1 TB

Technical Specifications

...

RUCB36-1 4MP IR Bullet Camera

Camera
Sensor 1/3″, 4.0 megapixel, progressive scan, CMOS
Lens 3.6mm@F1.8 Angle of view(H): 90.5°
Shutter Auto/Manual, 1/6~1/8000 s
Min. Illumination Color: 0.02 Lux (F1.8, AGC ON) 0 Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
IR Range Up to 30m (98 ft) IR range
S/N >55dB
WDR 120dB
Noise Reduction 2D/3D
Video
Max. Resolution 2592×1520
Video Compression H.264/MJPEG
Frame Rate 4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps 3MP (2048×1520): Max. 30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
ROI Supported
OSD Up to 8 OSDs
Motion Detection Up to 2 areas
Privacy Mask Up to 4 areas
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, FTP, UPnP, HTTP
Compatible Integration API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af
2.0 W (6.4 W with IR on)
Dimensions (L × W × H) 157.3 × 62.4 ×63 mm (6.2” × 2.5” × 2.5”)
Weight 0.45 kg (0.99 lb)
Working Environment -35°C ~ +60°C (-31°F ~ 140°F), Humidity ≤ 90% RH(non-condensing)
Ingress Protection IP66

...

DVR-RU4NVR2 4 Channel Digital Video Recorder

Video and Audio
IP Video Input 4-ch
Two-way audio Input 1-ch, RCA
Network
Incoming bandwidth 60Mbps
Outgoing bandwidth 64Mbps
Remote connection 128
Video/Audio Output
HDMI/VGA Output VGA: 1920x1080p /60Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz HDMI: 4K (3840×2160) /60Hz, 4K (3840×2160) /30Hz, 1920x1080p /50Hz, 1600×1200 /60Hz, 1280×1024 /60Hz, 1280×720 /60Hz, 1024×768 /60Hz,
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 8-ch
Decoding
Compression H.265/H.264
Live view/ Playback 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 1 x 4K@30, 3 x 4MP@20, 4 x 1080p@25, 8 x 720p@25
Software
Computer Operating System Windows, Mac OS
Internet Viewing HomeSafe View App
Handheld Device Supported iOS, Android, 3G/4G Smartphones & Tablets
Hard Disk
SATA 1 SATA interface
Capacity up to 6TB for each disk
External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel: 2 x USB2.0
PoE
Interface 4 independent 100 Mbps PoE network interfaces
Max Power Max 30 W for single port Max 54W in total (13.5 W for each)
Supported Standard IEEE 802.3at
General
Power Supply 48V DC
Consumption ( without HDD and PoE ) ≤ 8 W
Working Temperature +14°F ~ +131°F (-10°C ~ + 55°C)
Working Humidity 10% ~ 90%
Dimensions 42 x 205 x 205mm (1.7’’ x 8.1’’ x 8.1’’)
Weight ( without HDD ) 1.3 lb (0.59kg)

Videos

How to create my Revo account
Revo America – How to create my Revo account
How To Setup Your Revo NVR
Revo America – How To Setup Your Revo NVR
How To View Your Cameras Remotely
Revo America – How To View Your Cameras Remotely
How To Network Your Revo NVR
Revo America – How To Network Your Revo NVR
How To Connect Cameras To The NVR
Revo America – How To Connect Cameras To The NVR
How To Add NVR To myrevocloud Account
Revo America – How To Add NVR To myrevocloud Account

Disclaimer

Specs and design can change without previous notice

Downloads

Product Manual – Ultra™ HD Surveillance System with Security Cameras & Monitor
